GstarCAD 2017

Design, share and visualize your CAD drawing is better with GstarCAD 2017. Best-ever core performance, best-ever features and best-ever innovations are what this CAD platform offers.

video button gstarcad product image

GstarCAD Key Features

Most Compatible

GstarCAD is compatible with most CAD formats, commands, code-level API, and user interface.

Full Customizable

GstarCAD is UI fully customizable that tailors your specific visual needs.

2D/3D CAD Platform

GstarCAD offers familiar 2D/3D environments for designers and application developers.

Development

GstarCAD allows transplant your own solutions effortlessly without restrictions.

Productive

GstarCAD comes with productive tools for drafting, modeling, editing, dimensioning and annotation.

Innovative

GstarCAD continuously innovative functionalities to enhance user design experience.

Innovative

Much Faster

GstarCAD achieves top level memory optimization allowing you work much faster.

Collaborative

GstarCAD provides cloud service and mobile solution to streamline workflow across your project team.

gstarcad horn

What’s New in GstarCAD 2017?

Learn about new, enhanced and innovative features added in this release and take advantage of them.

What’s New in GstarCAD 2017?

Learn about new, enhanced and innovative features added in this release and take advantage of them.

Table

Get a better drawing documentation with the new table feature. You can create, export or edit a table conveniently.

Get a better drawing visualization with the new transparency feature. Apply transparency to gradient, hatch, or layer objects as never before.

With flatshot command you can create a 2D representation of all 3D objects based on current or different views.

Now you can make a symmetrical drawing by making the first half representation and the other one is displayed as you draw.

Comparing similar drawings geometry to see the details accurately, and insert it onto current workspace is possible with Graphic compare tool.

Now you can shape intersected objects in few steps. The outline innovative tool extracts all intersected objects as a polyline shape once per all.

Now you can trim, or break intersected objects with gap distance in four different methods with break object innovative tool.

Block Break innovative tool is able to wipeout or break an object that is overlapped by a reference block.

Now you can edit an xref within the current drawing. The objects that you select are temporarily extracted and made available for editing in the current drawing.

Improve your drawing with enhanced features. Now wipeout command supports circle and complex polyline options to be used as a wipeout object.

With the enhanced mirror command you can select a mirror line option as axis reference, so you can get a set of mirrored objects quickly.

A new visual enhancement for two object snap options are available on status bar when you select Distance from Endpoint and Divide Segments options.

dynamic_input_mini

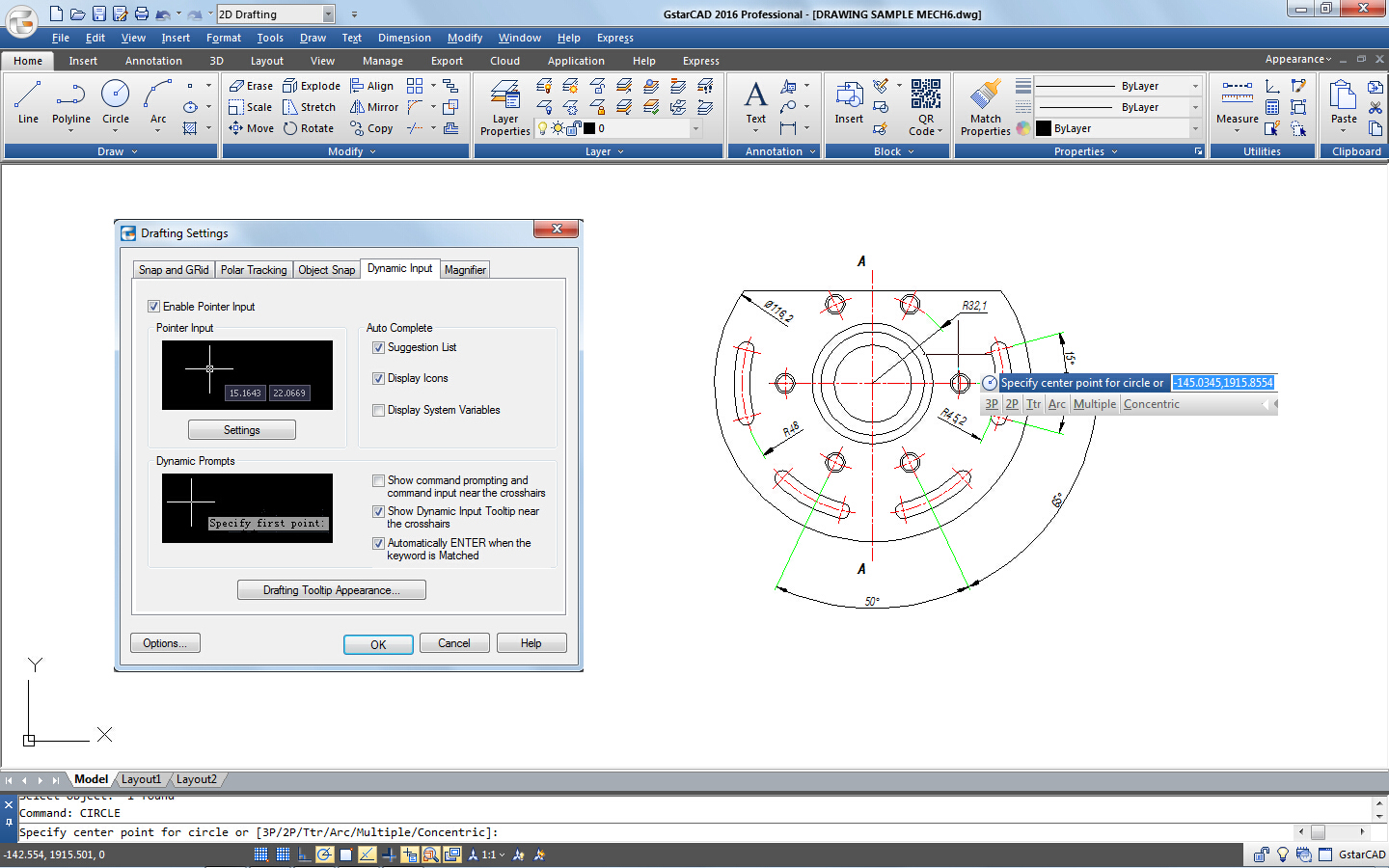

New Dynamic Input

New Dynamic Input

The new dynamic input displays all options of a command and could select them in different methods. Users no longer need the command line either floated or docked, gaining more workspace to get wider viewing of the drawing.

DGN_File_Format_MINI

DGN File Format

DGN File Format

Full DGN files and related commands such as DGNIMPORT, DGNATTACH, DGNADJUST, DGNMAPING, etc. are supported. Now you can import and attach as underlay a Microstation native format.

multifunctional_grips_mini

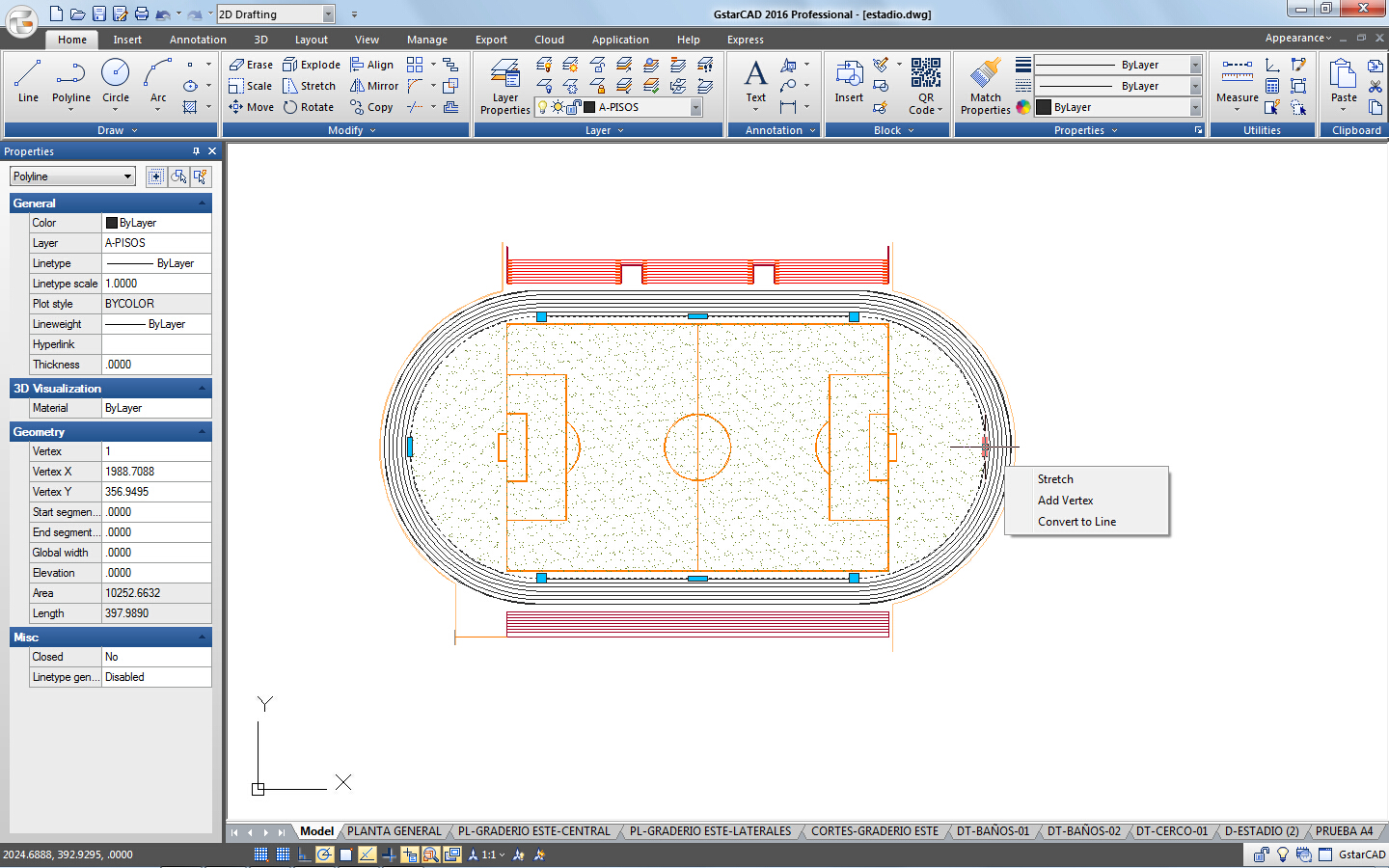

Multifunctional Grip

Multifunctional Grip

Polyline objects support multifunctional options. The available functions (Stretch, Add Vertex, and Convert to Arc) can be seen by hovering over a grip.

object_snap_mini

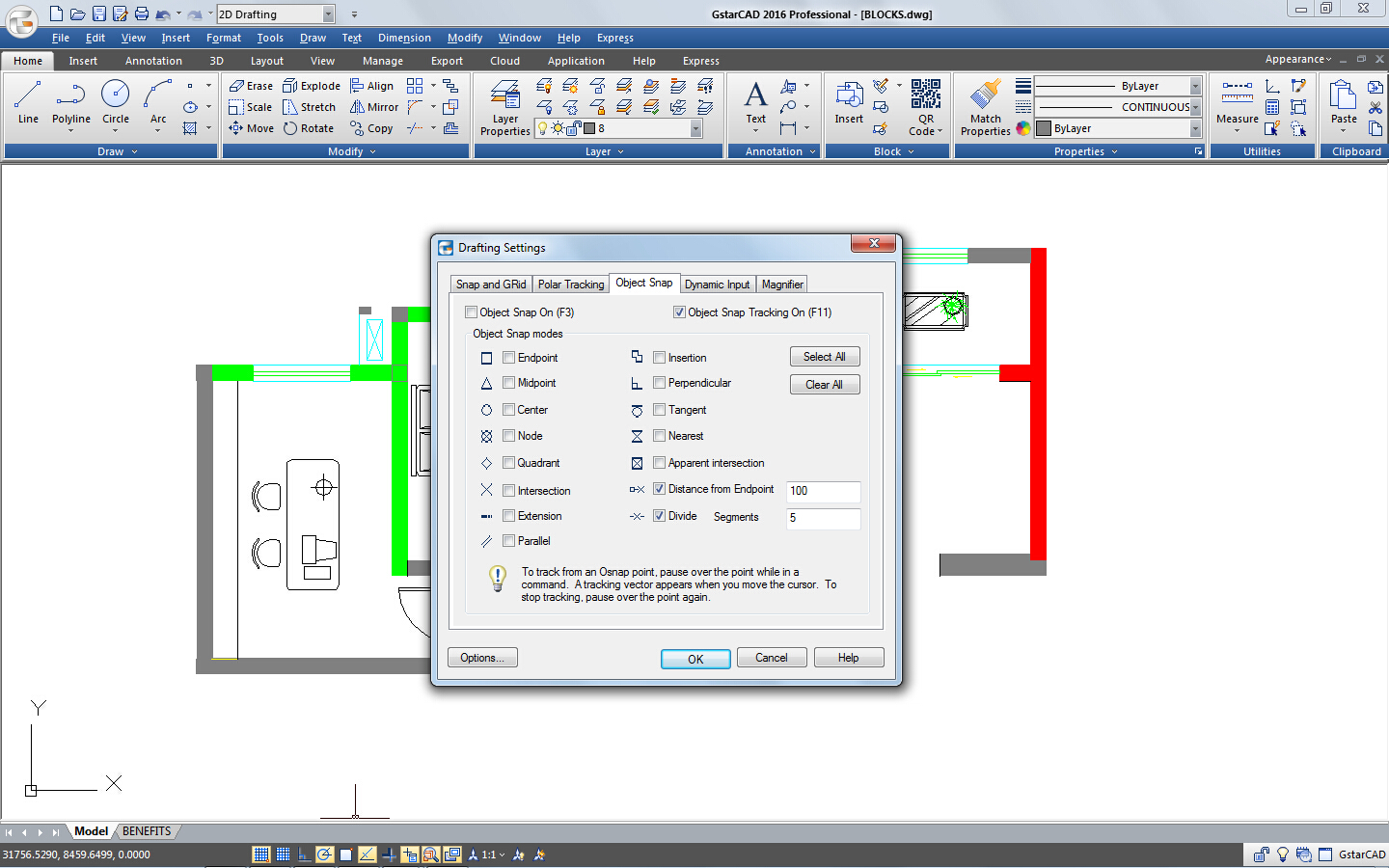

Object Snap Options

Object Snap Options

‘Distance from Endpoint’ and ‘Divide Segments’ options are added in Object Snap tab in Drafting Settings, the ability to snap points at certain distance more accurate has been improved, so you don’t need to waste time on useless object length calculation.

Object_Snap_Options
invert_fillet_mini

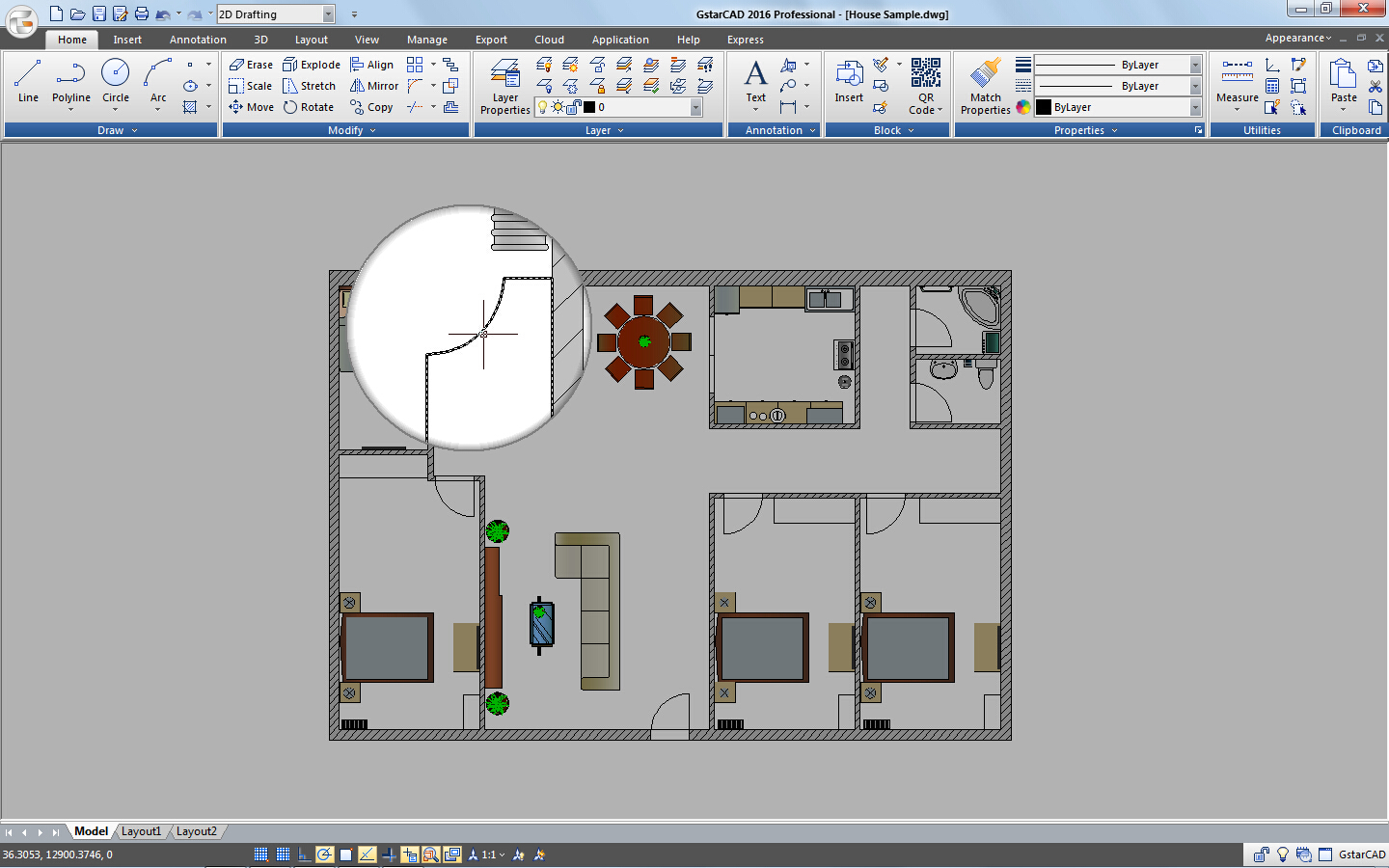

Invert Fillet

Invert Fillet

Invert Fillet has a very wide range of usage particularly in construction and furniture industry. The FILLET command now offers a new option called Invert. You can create a reverse fillet by this option.

invert_fillet
Layout_Space_Switching_Optimization-Mini

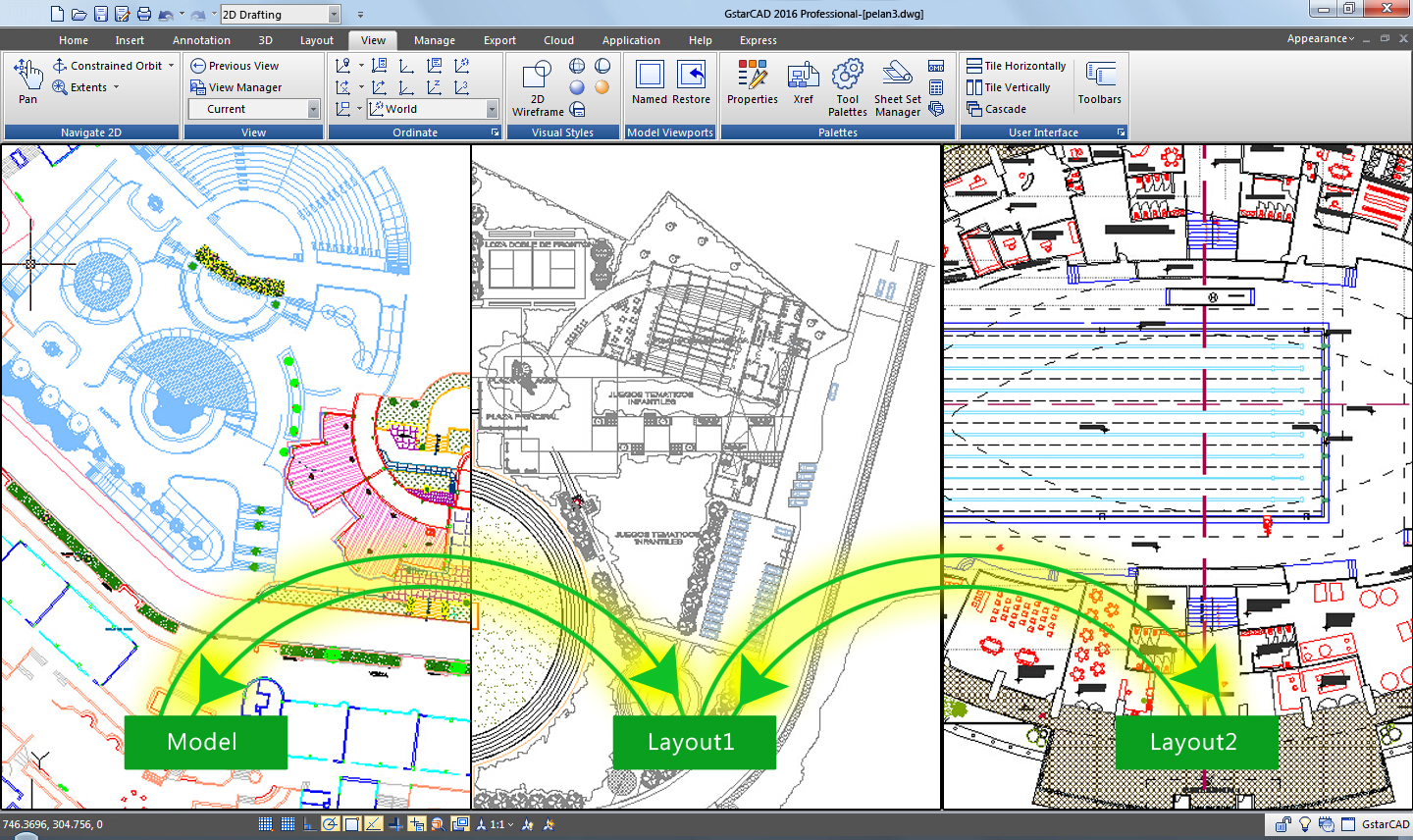

Layout Space Switching

Layout Space Switching

GstarCAD 2016 focuses on layout space switching optimization, which reduces time considerably. Especially when switching layouts over twice is even much faster than before.

Layout_Space_Switching_Optimization
Objects_Visualization_Optimization-Mini

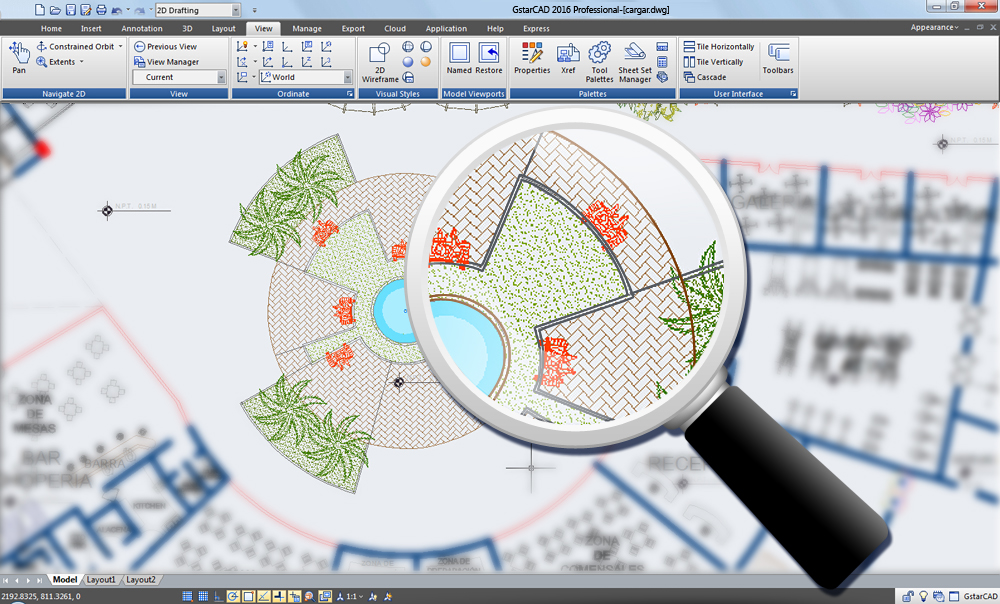

Objects Visualization

Objects Visualization

GstarCAD 2016 enhances object’s visualization and the ability to snap points over these objects more accurate than previous version. Now when performing zoom in or zoom out, over circle(s) or arc(s), you can get a better object visualization.

GstarCAD 2017 Innovative Features

GstarCAD 2017 Innovative Features

Block Break
Break Object
Graphic Compare
Outline
Symmetric Draw
